General Description:
The DAQ411 modules digitize incoming signals at 2.4 GSPS. The on-board DRAMs provide up to 512 M x 10 bit data memory. The DAQ modules can be controlled by a PC via a USB interface. The clock input is single-ended 50-Ω terminated with a minimum power of 6 dBm. The digitized data can be downloaded, displayed, and analyzed on a PC. The module accepts a high-speed trigger signal for operations in burst modes. Two burst modes are offered: single burst and multiple-burst modes. The multiple-burst mode allows users to capture multiple folds of signals with trigger events. The modules come with companion GUI and API.
Key Features:
- 10-bit ADC
- ENOB: 8
- Standard sampling rate: 2.4 GSPS
- Optional variable sampling rate: 1 ~ 2.4 GSPS with 100 MSPS interval
- 512M x 10-bit memory depth
- Up to 200 millisecond waveform at 2.4 GSPS
- Accepts external trigger
- Multiple-burst mode for acquiring multiple triggered signals
- Optional On-board hardware average/accumulation
- USB 2.0
- Optional 1-lane Gen2 PCIe BMD/DMA interface for data upload(interface card included)
- 12V power supply
- GUI for module controls and waveform display
- Companion API and software drivers for easy system development
- Aluminum anodized enclosure: 8.25 x 3.5 x 10.7 (W x H x D) inches
Applications:
The flexibility of Euvis DAQ modules to generate arbitrary patterns with high sample rates, dynamic page selection, and continuous or burst mode operation allow the ADC to be used for a variety of applications, such as:
- High-speed data acquisition
- High-speed test and measurement
- Wireless networking
- OFDM 802.11ac
- Electronic warfare
- RF Digital receiver
- Software Radio
Board Photo:
(Module photo here)

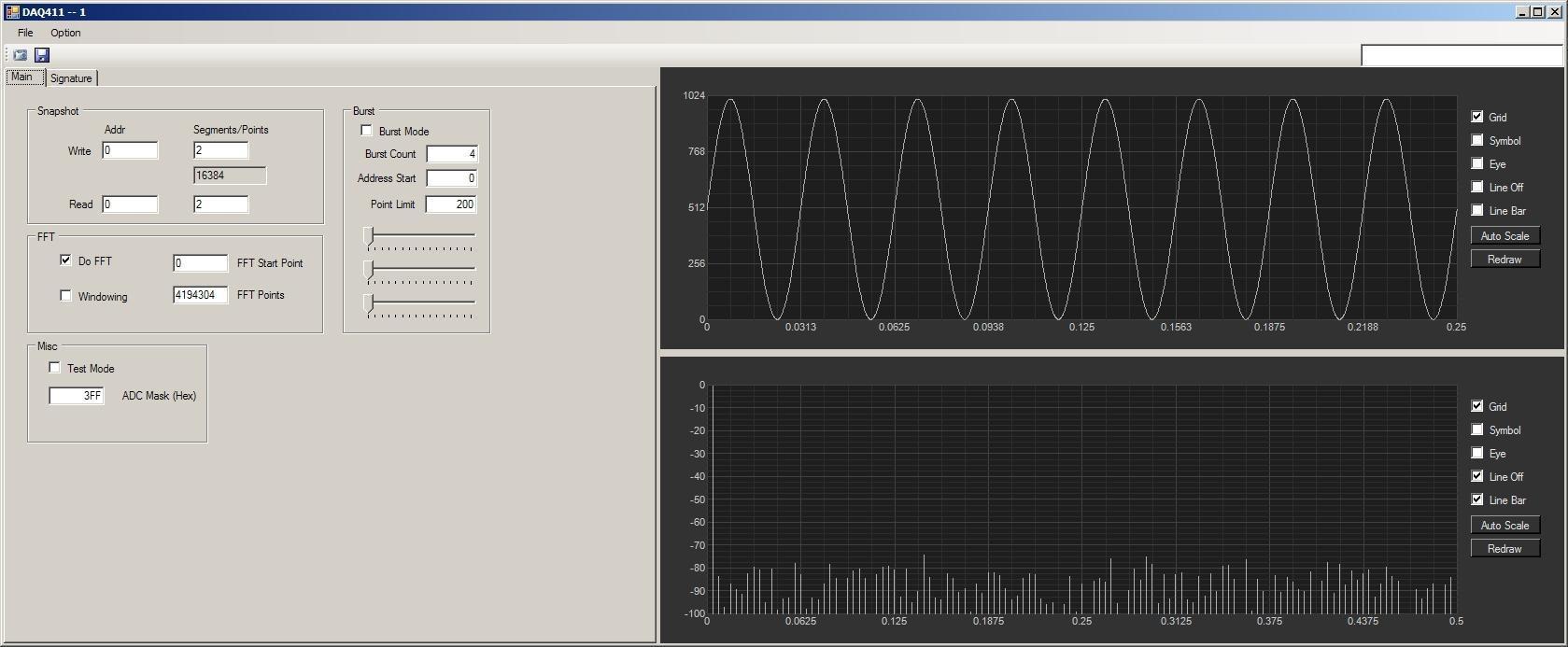

Graphical User Interface Application:
Functional Specifications:
| GENERAL | |
| ADC Resolution | 10 bits |
| ENOB @ 2.4 GSPS | 8 |
| SFDR @ 2.4 GSPS | 50 dBc |
| Waveform Acquisition Modes |
Continuous
Single Burst Multiple-Burst |
| User Interface |
USB and Optional PCIe
GUI for Windows XP and Windows 7 |
| INPUT CLOCK | |
| Type | Single Ended, 50-Ω terminated |
| Connector Type | SMA |
| Frequency Range |
Standard: 2.4 GHz
Optional: 1 ~ 2.4 GHz |
| Power Level | 3 dBm to 8 dBm |
| INPUT | |
| Type | Differential, 50-Ω terminated |
| Connector Type | SMA |
| Input Bandwidth | 100 KHz ~ 1.2 GHz |
| Input Level | 1 Vpp Differential |
| Input Coupling | AC Coupled |
| Input Return Loss | 10 dB |
| TRIGGER | |
| Connector | SMA |
| External Trigger | LVCMOS 2.5V |
| WAVEFORMS | |
| Max Waveform Length | 536,870,912 samples |
| Minimum Waveform Length (continuous) | 8,192 samples |
| Minimum Waveform Length (burst) | 8,192 samples |
| AVERAGE/ACCUMULATION | |
| Accumulation Resolution | 32 bits |
| Maximum Accumulation Number | 65,536 |
| Maximum Accumulation Length | 16,384 samples |
| API | |
| CLR Language Support |
Visual C++
Visual C# Visual Basic Visual J# |
| OPTIONS | |
|
Variable sampling rates On-board hardware average/accumulation |
|
Measured data with
AWG452:
524288-point FFT of chirping waveform 480 - 600 MHz generated by AWG452

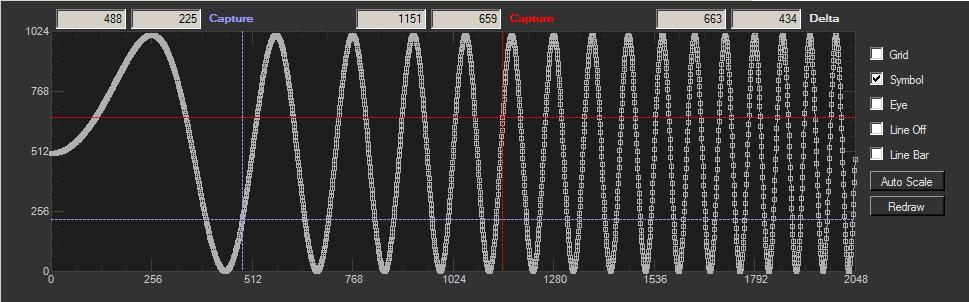

Time-domain capture of a pulse sinc waveform in Single Burst Mode
3-burst capture of 3 widely spread pulses with Multi-Burst Mode
Enclosure Dimensions:
| Enclosure Dimensions | |
| Length | 10.7 inches |
| Width | 8.25 inches |
| Height | 3.50 inches |
Enclosure Drawings:
Front Panel
Back Panel
Side Panel
To get pricing information and the complete datasheet, please e-mail: info@euvis.com.
