Loading Waveform -

There are two ways you can load waveform files. The first way, which is detailed below, is simply loading a saved .wf file from a previous session with the GUI application. The second way is to load a custom waveform that you have created. To see how to create and load a custom user file, please go to the User Files page in this section.

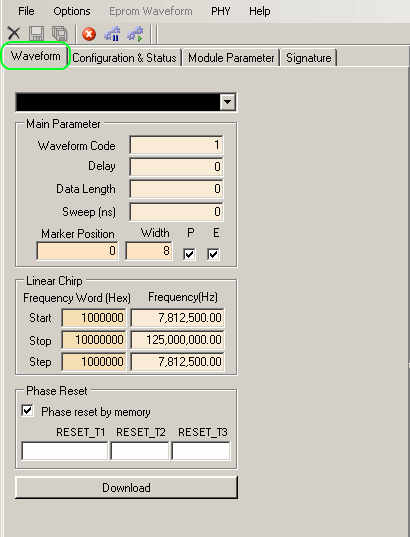

» With the program open, click on the Waveform tab if you are not already in the Waveform Window.

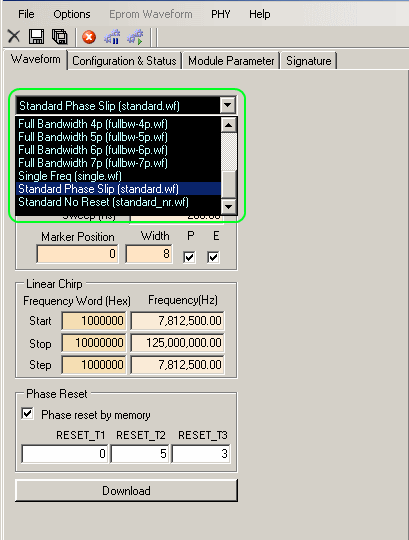

» Click on the pull-down bar and select one of the saved waveforms.

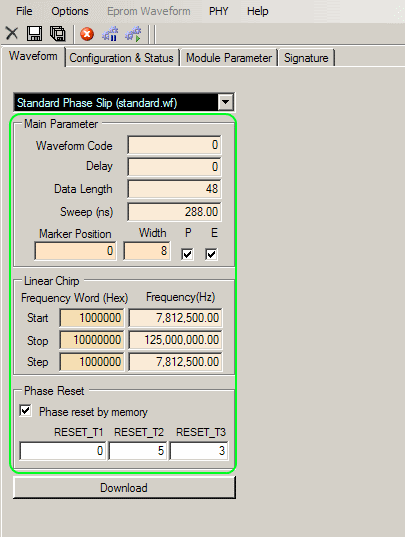

» After clicking on the waveform, waveform parameters in the file will be loaded into the GUI.

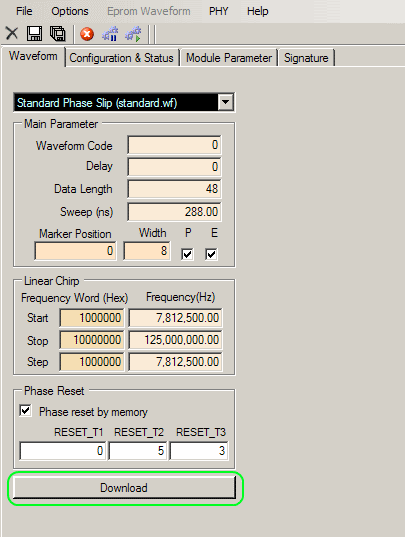

» Please note that at this point, that waveform still has not been downloaded to the DSM. In order to do this, you will need to click on the Download button.
