General Description:
The DSM309 module generates arbitrary frequency chirping CW with frequency update rates up to 312.5 updates/microsecond. At 4 GSPS, the module can generate frequency chirping in a bandwidth from DC to 2 GHz. The chirping profile can be linear or arbitrarily programmed. The DSM309 can be controlled by a PC via GUI or by user application programs via API, or can work alone with pre-stored chirping waveform. The chirping waveform generations can be in Continuous, Triggered Continuous or Triggered Burst modes. Up to 8 waveforms can be stored in user pages and pages can be switched on the fly.
Key Features:
- 4 GSPS DDS with 11-bit amplitude and 13-bit phase resolution
- Output sampling rate up to 4 GSPS for chirping
- Standard output sampling rate at 4 GSPS
- Optional output sampling rate range from 1 to 4 GSPS in 200 MSPS increments
- 520K X 32-bit words memory depth with maximum 8 different user waveforms
- Waveforms can be switched dynamically by selecting user pages on the fly
- Minimum waveform length of 256 ns in Triggered Burst Mode
- Maximum 2 millisecond chirping waveform at 4 GSPS
- Programmable phase reset for phase repetition
- Accepts external trigger and generates marker signal (programmable)
- 14.6 W power consumption at 4 GSPS
- USB 2.0 compliant interface (USB cable included)
- Other interfaces available upon request
- Companion API and software drivers for easy system development
- API compatible with Matlab 2010a
- API compatible with LabView
Applications:
- FM chirp source for radars
- Agile LO frequency synthesis
- Electronic warfare
- RF signal source generation
- Fast frequency hopping
- VSAT satellite communications
- Test and measurement equipment

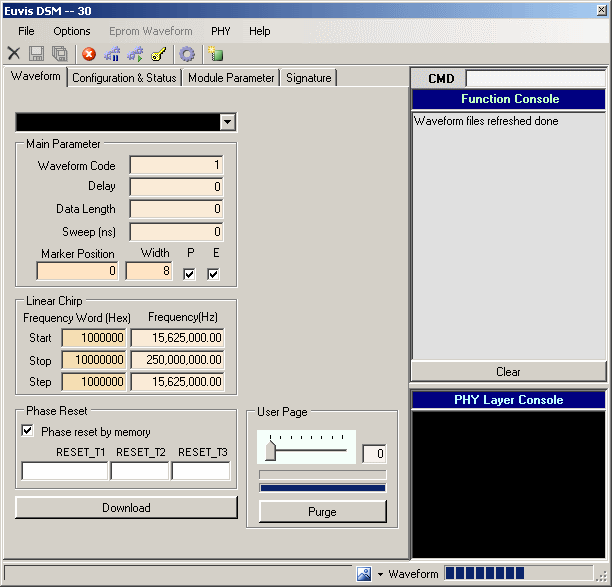

Graphical User Interface Application:
» To download the DSM Software please click here.
Waveform Spectrums:
|
|
|
|
0-200 MHz Chirp
|
400-600 MHz Chirp | 800-1000 MHz Chirp |
|
|
|
|
1000-1200 MHz Chirp
|
1400-1600 MHz Chirp | 1800-2000 MHz Chirp |
|
|
|
|
0-1000 MHz Chirp
|
1000-2000 MHz Chirp | 0-2000 MHz Chirp |
Detailed Specifications:
| GENERAL | |
| DDS Frequency Resolution | 32 bits |
| Frequency Update Rate | 1/8 of Input Clock |
| Waveform Generation Modes |
Continuous
Triggered Continuous Triggered Burst / Pulse |
| User Interface | Windows GUI, USB |
| INPUT CLOCK | |
| Type | Single Ended |
| Termination | 50 ohms |
| Connector Type | SMA |
| Standard Frequency | 2.0 GHz |
| Optional Frequency Range | 500 MHz to 2.0 GHz in 100 MHz increments |
| Power Level |
Minimum: 0 dBm
Typical: 4 dBm Max: 9 dBm |
| Return Loss | Typical: 10 dB |
| OUTPUT | |
| Type | Single Ended or Differential |
| Termination | 50 ohms |
| Connector Type | SMA |
| Standard Output Sampling Rate | 4 GSPS |
| Optional Output Sampling Rate Range | 1 GSPS to 4 GSPS in 200 MSPS increments |
| Output Maximum Frequency | 2.0 GHz |
| Output Level | -600 mV to 0 V |
| Residual Phase Noise @ 10kHz from Carrier | -140 dBc/Hz |
| Output Return Loss | Typical: 10 dB |
| WAVEFORMS | |
|
Minimum Waveform Length
Continuous Modes |
32 frequency words |
|
Max Waveform Length
Continuous Modes |
523,264 frequency words |
|
Minimum Waveform Length
Burst Mode |
256 ns |
|
Max Waveform Length
Burst Mode |
519,176 frequency words |
| USER PAGES | |
| Maximum Number of User Pages | 8 |
| TRIGGER | |
| Connector Type | SMA |
| Source | External or Internally Software Generated |
| External Trigger Logic | LVCMOS33 |
| MARKER | |
| Number of Markers | 1 |
| Marker Length | User defined |
| Marker Output Logic | LVCMOS33 |
| POWER SUPPLY | |
| Voltage | +12 V |
| Current | 1.22 A |
| Power | 14.6 W |
| AC Adapter |
Included with either
North American (Type A) or European (Type C) plug |
| API | |
| Version | Euvis API 2.0 |
| CLR Language Support |
Visual C++
Visual C# Visual Basic Visual J# |
| GUI | |
| Available for Windows XP, Windows Vista and Windows 7 | |
| OPTIONS | |
|
|

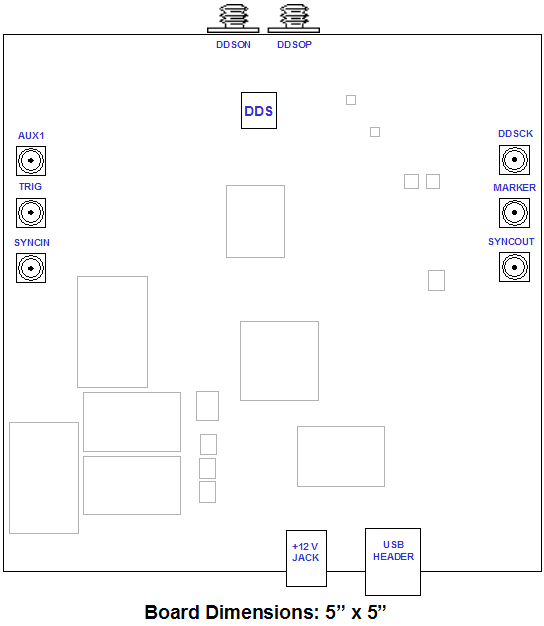

Board Diagram:
