General Description:
The SYN101 modules generate two CW sinusoidal waveforms at frequencies up to 1 GHz with programmable delay. The SYN101 can be controlled by a PC via a USB interface. The module comprises two direct digital synthesizers (DDS), DS875, which have 30-bit frequency resolution and 11-bit phase resolution. Each DDS provides an independent RF channel with adjustable frequency from DC up to 1 GHz and adjustable phase from 0° ~360° in 11-bit resolution. The SYN101 is equipped with an on-board 2-GHz PLL clock source and powered by a 12V wall-mount AC adapter.
Key Features:
- Two independently controlled channels (A and B) with differential analog outputs
- Adjustable frequency 0 ~ 1 GHz in 30-bit resolution
- Adjustable phase 0° ~ 360° in 11-bit resolution
- On-board clock source; there is no need of external clock
- Friendly control by graphical user interface (GUI)
- Companion API for embedded system development
- USB 2.0 compliant interface (other interfaces available upon request)
- 10.6 W power consumption with +12V DC power supply
- +12V wall-mount power supply included

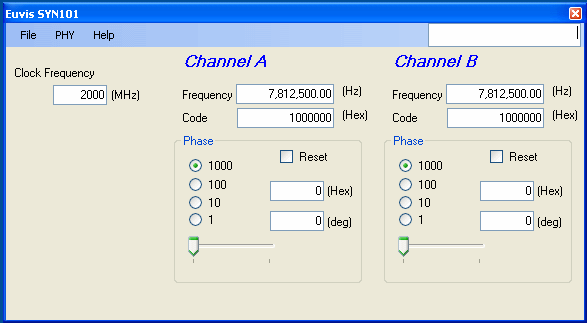

Graphical User Interface Application:
» To download the SYN101 Software and Manual, please click here.
Electrical Specifications:
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Temperature | TO | 25 | C° | ||
| Output Frequency | Fout | 0 | 1 | GHz | |
| Frequency Resolution | Δf | 1 | Hz | ||
| Output Level | Vout | -635 | 0 | mV | |
| Output Power | Pout | -4 | 0 | dBm | |
| Residual Phase Noise1 | φ | -145 | dBc/Hz | ||
| Clock Port Return Loss | RLRF | 10 | dB | ||
| Output Port Return Loss | RLRF | 15 | dB | ||
| Power Supply | +12V | +12 | V | ||
| I+12 | 880 | mA |
110 KHz offset
Terminal Description:
| Name | Function | I/O | Signal |
| GND | Ground | DC | |
| +12V | Power, +12 V | DC | |
| OAP | Channel A Waveform Output Positive | O | RF |
| OAN | Channel A Waveform Output Negative | O | RF |
| OBP | Channel B Waveform Output Positive | O | RF |
| OBN | Channel B Waveform Output Negative | O | RF |
Detailed Specifications:
| General | |
| DDS Frequency Resolution | 30 bits |
| DDS Phase Resolution | 11 bits |
| Frequency Update Rate | 1/8 of input clock |
| User Interface | Windows XP Graphical User Interface, USB |
| Input Clock (Optional) | |
| Type | Single Ended, 50 ohm terminated |
| Connector Type | SMA |
| Frequency Range | 500 MHz to 2.0 GHz |
| Output | |
| Type | Differential, 50 ohm terminated |
| Connector Type | SMA |
| Frequency Range | Up to 1 GHz |
| Output Level | -635 mV to 0 V |
| Output Power | -4 dBm to 0 dBm |
| Residual Phase Noise | -145 dBc/Hz @ 1 KHz |
| Output Return Loss | 15 dB |

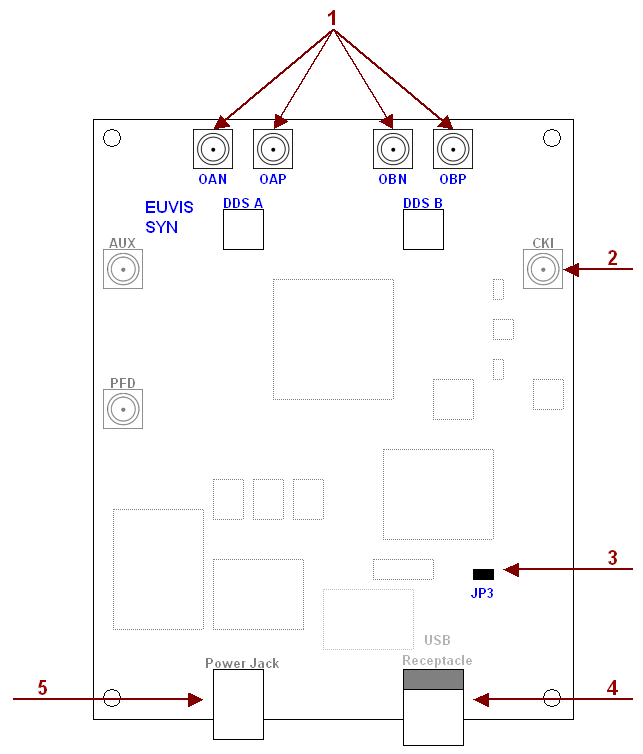

Board Diagram:
| Board Dimensions | |
| Length | 5 inches |
| Width | 4 inches |
| Height | 1.75 inches with heat sinks
(0.6 inches without heat sinks) |
Detailed Datasheet:
To get the complete SYN101 datasheet, please click here.
Email: info@euvis.com to get pricing information.
