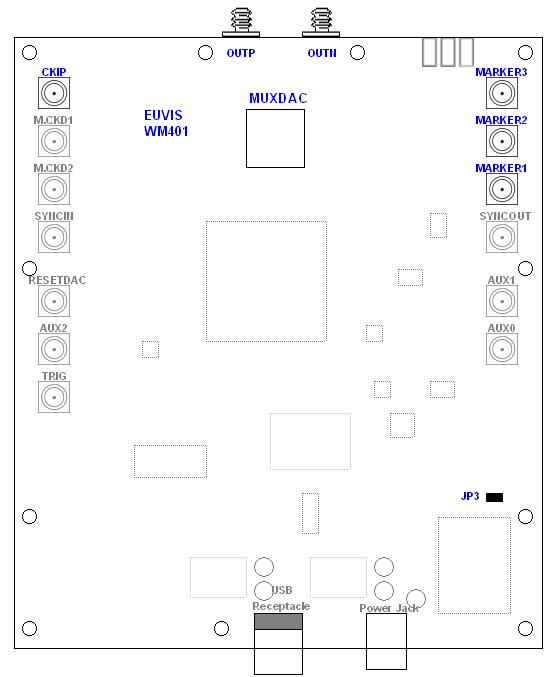

Board Layout
Dimensions And Mount Hole Locations
| Length | 6.375 Inches |
| Width | 5.500 Inches |
| Height | 1.75 Inches with heat sink (0.6 inches without heat sinks) |
| Weight | Less than 1 lb |
| Mount Hole Locations In Mils (Origin is lower left corner) | 250,250 250,1375 250,3875 250,6125 1750,6125 2000,250 3750,6125 5250,250 5250,1375 5250,3875 5250,6125 |
