Loading Waveform -

There are two ways you can load waveform files. The first way, which is detailed below, is simply loading a saved .wf file from a previous session with the GUI application. The second way is to load a custom waveform that you have created. To see how to create and load a custom user file, please go to the User Files page in this section.

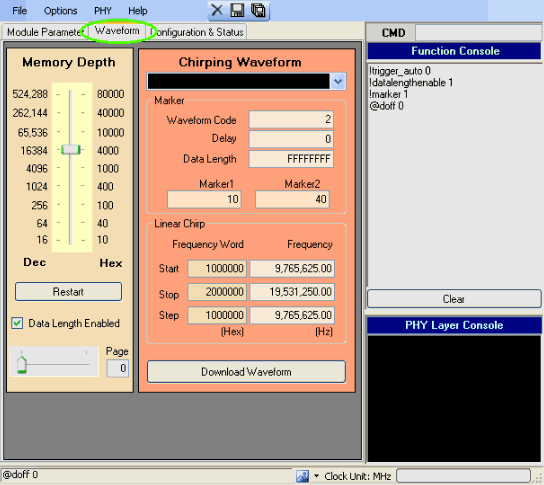

» With the program open, click on the Waveform tab if you are not already in the Waveform Window.

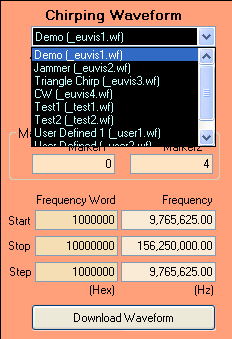

» Click on the pull-down bar and select one of the saved waveforms. After clicking on the waveform, the board will output the waveform if you have "Auto Download" enabled. If it is not enabled, click on Download Waveform near the bottom of the window or click on File --> Load Waveform.
