Load Waveform -

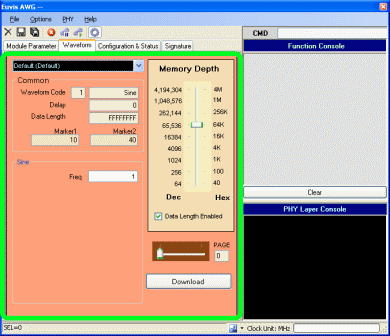

» With the program open, click on the Waveform tab if you are not already in the Waveform Panel.

» Click on the pop-up menu and select one of the saved waveforms. After clicking on the waveform, the board will output the waveform if "Auto Download" has been enabled. If it is not enabled, click on Download Waveform near the bottom of the window or click on File --> Load Waveform.
