Configurations -
Please note that multiple board operation is an option and is not included in the base DSM configuration
There are a few ways to setup master and slave boards.

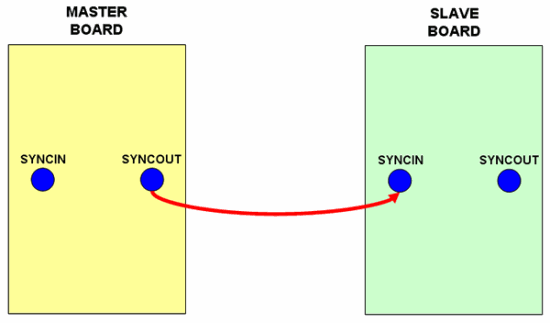

Single Master, Single Slave
For a single master, single slave configuration, simply connect the SYNCOUT on the master to the SYNCIN on the slave with a SMA cable.
Make sure that the Internal SYNCI and the SYNCO is checked in the master board DSM application. When the user sends a trigger signal, the boards will begin outputting waveforms.

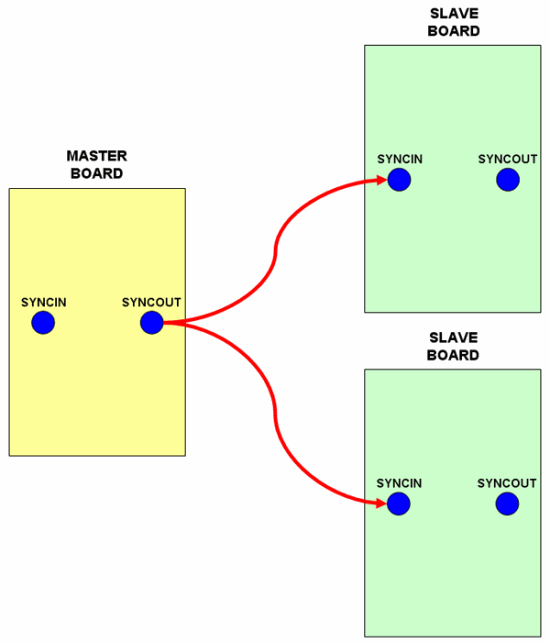

Single Master, Multiple Slaves
For multiple slaves, you will have to split the SYNCOUT signal from the master board as demonstrated below:
