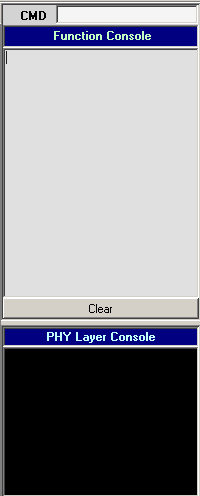

Consoles -

Function Command Line

You can manually enter commands to control the DSM here. The commands entered are the parser commands that are described in the API manual. For more information on the API and how to create your own chirping program please see the accompanying API manual. The command line is useful to test all commands you will use in your own program. You can test your sequence of commands to see if the board will behave as you intend it to.

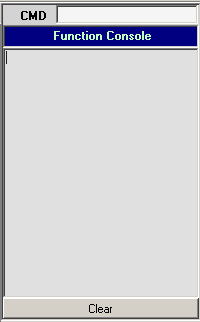

Function Console

Displays commands that have been entered into the DSM. Only available if Function Console Response in Preferences is checked.

PHY Layer Console

Displays device and firmware information from the DSM. Only available if PHY Console Response in Preferences is checked.
