Hardware Setup-

» Connect your oscilloscope to the OUTP SMA connector.

» Connect the OUTN SMA output to a spectrum analyzer.

» Connect clock source to CKIP SMA input.

» Set up a cooling fan that blows room temperature air at 20 cubic feet per minute (20 cfm) across the module.

» Plug the 12V power adapter into the power jack.

» Connect the WM401 module to your PC with the USB cable.

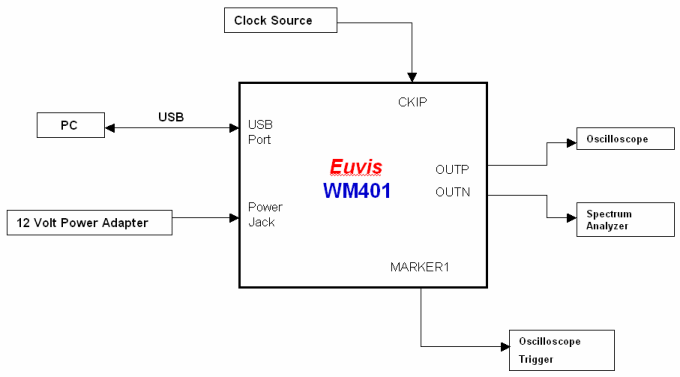

» The setup schematic is shown below:

» If you have set up everything correctly, you are ready to launch the GUI.
