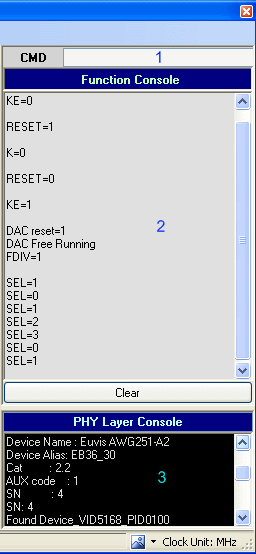

Consoles -

  1. Function Command Line
  2. Function Console
  3. PHY Layer Console


Function Command Line

Function Command Line


You can manually enter commands to control the AWG here. This is also useful when you are writing your own application and want to test if your sequence of commands will work.


Function Console

Function Console


Displays commands that have been entered into the AWG. Only available if Function Console Response in Preferences is checked.


PHY Layer Console

PHY Layer Console


Displays device and firmware information from the AWG. Only available if PHY Console Response in Preferences is checked.
