Saving Waveforms -

There are two ways to save a waveform: save into an existing waveform and saving into a new waveform file. Waveform files are marked ".wf" and by default are in the directory C:\Program Files\Euvis\__WF. You can change this directory by changing the "User Waveform Directory" in Preferences.

Saving into Existing File

» After you have loaded an existing file, change the waveform parameters and the module parameters to the desired settings.

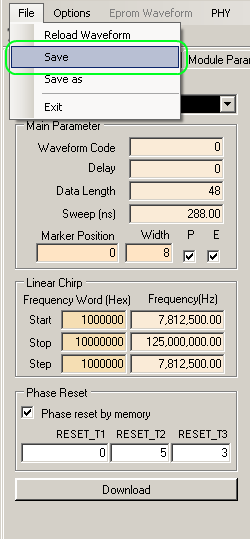

» When you are ready to save, go to File --> Save.

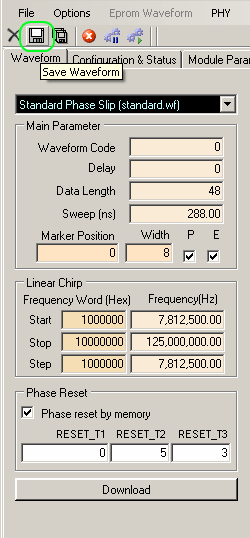

» Alternatively, you can also click on the "Save" button on the toolbar.

Saving into New File

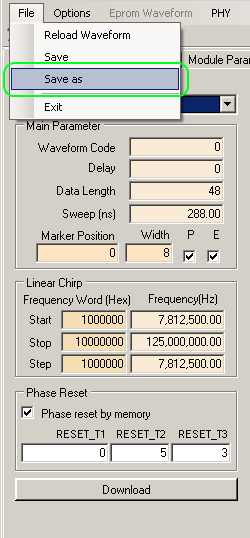

» First, load any predefined waveform from the drop-down box in the Waveform window. Then simply change the parameters to the desired settings and to to File --> Save as.

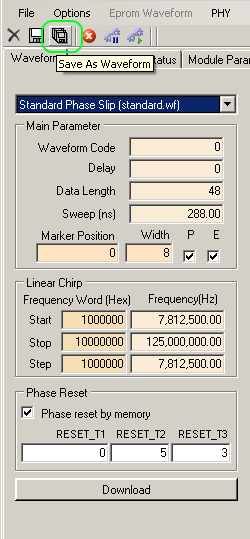

» Alternatively, you can also click on the "Save As" button on the toolbar.

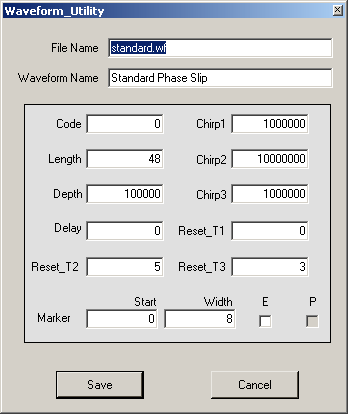

» A new dialog box will appear giving you the options to save the waveform.

File Name is the actual file name that the operating system uses to identify your file. Make sure that the file name ends with ".wf" to distinguish it from other files.

Waveform Name is an internal program name that will show up in the drop-down box in the Waveform window and will help you identify the waveform file.

The other options in the blue box are just the parameters which you have currently. If you wish to change them, you may alter the values in the box to the right of the parameters.

» After you are satisfied, click on "Save". Note that if the File Name is not unique, the program will overwrite the existing file without warning you so please be careful.
